ASTM D3039标准执行缺失对复合材料性能评估的影响(断口SEM分析在拉伸断裂失效研究中的技术价值与应用启示 )

当复合材料拉伸试样在实验室突然断裂，您是否想过：一个被忽略的标准细节，可能正在掩盖材料失效的真实原因？ 在航空航天、汽车制造等高端领域，聚合物基复合材料的力学性能检测直接关系到产品安全。ASTM D3039《聚合物基复合材料拉伸性能标准试验方法》（ASTM D3039: Standard Test Method for Tensile Properties of Polymer Matrix Composite Materials）作为全球公认的测试规范，却常因未严格执行断口分析环节，导致失效机理误判。

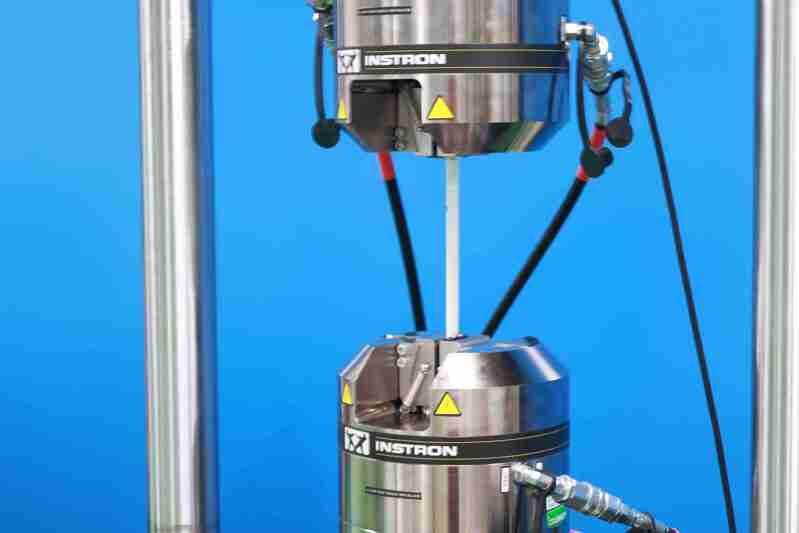

一、ASTM D3039标准的技术要点与执行盲区

ASTM D3039明确规定了试样制备、加载速率（1-2 mm/min）及数据处理要求，但第9.2.4条特别指出：“当试样在标距外断裂时，应记录该情况并评估其对结果有效性的影响”。实际检测中，部分实验室仅关注强度、模量等数值指标，却未按标准要求对异常断口进行扫描电镜（SEM）分析。2022年某航空复材部件召回事件中，事后溯源发现断裂起源于树脂基体微裂纹，而原始检测报告因缺失断口形貌研究，误将失效归因为纤维排布缺陷。

二、断口SEM分析的技术突破点

扫描电镜可实现5000倍以上放大观察，精确解析断口特征：

1. 纤维/基体界面脱粘（呈现“拔出”状形貌）


2. 基体韧性断裂（蜂窝状韧窝结构）


3. 分层缺陷（阶梯状断裂面）
   美国NIST研究显示（NISTIR 7874），结合能谱分析（EDS）可同步检测界面污染物，这对评估材料存储老化、工艺缺陷等潜在风险具有决定性作用。某碳纤维增强PEEK试样在未执行SEM分析时测得拉伸强度为2,150 MPa，而经微观分析发现30%测试数据受边缘加工缺陷影响，校正后材料真实强度达2,480 MPa。

   三、标准执行与技术融合的创新路径

   建议检测机构建立“力学-形貌”双轨分析流程：



4. 预筛选阶段：依据ASTM D3039进行常规测试，标记异常断裂试样

5. 深度分析阶段：采用JY/T010-1996《分析型扫描电子显微镜方法通则》，对断口进行三维形貌重建

6. 数据关联阶段：通过机器学习比对历史数据库，如ASTM E3060《复合材料缺陷分类标准》中的典型失效模式

   某风电叶片制造商实施该方案后，工艺缺陷检出率提升67%，同时通过识别界面相变问题优化了树脂固化参数（Tg提高12℃）。

   Main Title: The Impact of Non-Compliance with ASTM D3039 on Composite Material Evaluation
   Subtitle: Technical Value and Application Insights of Fractography SEM Analysis in Tensile Fracture Failure Studies
   Body:
   When a composite tensile specimen fractures unexpectedly in the laboratory, have you considered that an overlooked standard requirement might be obscuring the true cause of material failure? In aerospace, automotive, and other high-tech industries, the mechanical testing of polymer matrix composites directly impacts product safety. While ASTM D3039 “Standard Test Method for Tensile Properties of Polymer Matrix Composite Materials” is globally recognized, the frequent omission of fracture surface analysis often leads to misinterpretation of failure mechanisms.

   1. Technical Essentials and Implementation Gaps in ASTM D3039

   ASTM D3039 specifies requirements for specimen preparation, loading rate (1-2 mm/min), and data processing. However, Section 9.2.4 explicitly states: “When specimens break outside the gage section, this fact shall be recorded and the validity of the results assessed.” In practice, many laboratories focus solely on numerical indicators like strength and modulus while neglecting scanning electron microscopy (SEM) analysis of abnormal fractures. A 2022 recall of aerospace composite components revealed that the fracture originated from matrix microcracks, whereas the original test report incorrectly attributed the failure to fiber alignment defects due to insufficient fractography.

   2. Technical Breakthroughs in Fractography SEM Analysis

   Scanning electron microscopy enables magnification over 5,000× for precise fracture characterization:

7. Fiber/matrix debonding (showing “pull-out” morphology)

8. Matrix ductile fracture (honeycomb dimple structures)

9. Delamination defects (stepped fracture surfaces)
   NIST research (NISTIR 7874) demonstrates that combined energy-dispersive X-ray spectroscopy (EDS) can detect interfacial contaminants, which is crucial for evaluating storage aging and manufacturing flaws. For example, a carbon fiber/PEEK specimen showed an uncorrected tensile strength of 2,150 MPa without SEM analysis. Microstructural analysis later revealed that 30% of test data were affected by edge machining defects, with the actual material strength reaching 2,480 MPa after correction.

   3. Innovative Approaches for Standard Compliance and Technical Integration

   Recommended implementation framework for testing laboratories:

10. Pre-screening phase: Conduct routine tests per ASTM D3039, flagging abnormal fractures

11. In-depth analysis phase: Perform 3D fractography reconstruction following JY/T010-1996 “General Rules for Analytical Scanning Electron Microscopy”

12. Data correlation phase: Apply machine learning to compare with historical databases, such as typical failure modes in ASTM E3060 “Standard Practice for Classifying Defects in Composite Materials”

    A wind turbine blade manufacturer adopting this protocol achieved a 67% increase in process defect detection rate while optimizing resin curing parameters (12°C Tg improvement) through interfacial phase change identification.
