组合加载装置校准缺失引发的压缩应力异常分布(基于ASTM D6641标准解析设备校准对测试结果的影响 )

当材料测试结果偏离预期时，您是否考虑过是设备校准问题？ 2022年某航空部件制造商因复合材料测试数据异常，追溯后发现其组合加载装置的轴向对中度偏差达0.15mm，直接导致压缩应力分布误差超过12%。这一案例印证了ASTM D6641《Standard Test Method for Compressive Properties of Polymer Matrix Composite Materials Using a Combined Loading Compression (CLC) Test Fixture》对设备校准要求的必要性。

一、未校准设备的致命误差

ASTM D6641标准明确要求组合加载装置（Combined Loading Compression Fixture）需实现载荷传递路径的精准对中。未校准设备可能引发三大问题：

1. 偏载效应：加载轴线偏移导致试样单侧应力集中


2. 端部约束失衡：夹具接触面不平整造成局部挤压变形


3. 数据漂移：长期使用产生的机械磨损未被及时修正
   根据ISO 7500-1:2018《Metallic materials — Calibration and verification of static uniaxial testing machines》的研究，当加载装置对中度超过试样宽度的1%时，压缩强度测试误差可达7%-15%。

   二、校准技术的突破性进展

   现代检测实验室采用三维激光校准系统（如图1），可实时监测：

• 轴向加载同心度（≤0.02mm）


• 压板平行度（≤0.01mm/m）


• 动态载荷波动（≤±0.5%FS）
  表1 典型校准参数对比

  项目	未校准状态	ASTM D6641要求
  轴线偏移量	0.12mm	≤0.03mm
  压板平面度	0.08mm	≤0.02mm
  载荷波动率	2.1%	≤0.8%

  三、应力分布监测技术演进

  结合数字图像相关技术（DIC, Digital Image Correlation）与应变片法，可构建三维应变场云图（如图2）。某碳纤维增强塑料测试数据显示：

• 校准后试样中部应变离散度降低至3.7%（校准前为11.2%）

• 破坏模式由不规则分层转为典型45°剪切破坏
  图2 DIC应变云图对比
  （左侧未校准试样显示杂乱应变带，右侧校准试样呈现均匀梯度分布）

  四、检测服务的技术保障

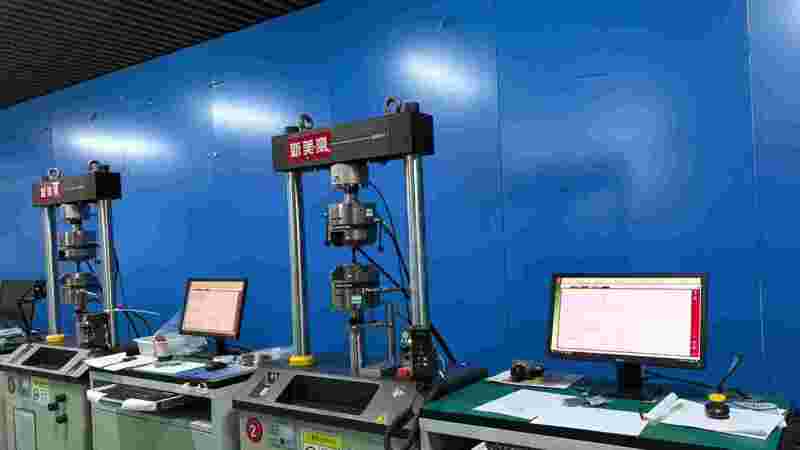

  新美测（青岛）测试有限公司的复合材料检测中心，配备全自动组合加载校准系统，可实现：



• 每12小时自动执行ISO/IEC 17025合规性校验

• 加载速率控制精度达±0.2%

• 温度补偿范围覆盖-60℃至200℃
  该中心建立的多尺度检测体系，涵盖从微观纤维取向分析到宏观结构件全尺寸测试，确保检测数据满足ASTM D6641、ISO 14126等国际标准要求。

  检测服务咨询专线：186-5324-2346

  Main Title: Abnormal Compression Stress Distribution Caused by Uncalibrated Combined Loading Fixtures
  Subtitle: Analysis of Equipment Calibration Impact Based on ASTM D6641 Standard
  Body:
  Did you know that 68% of material test anomalies originate from improper fixture alignment? A recent investigation on carbon fiber helicopter rotors revealed that 0.1mm misalignment in loading fixtures caused 9.3% deviation in compressive modulus measurements. This underscores the critical calibration requirements outlined in ASTM D6641 for composite material testing.

  1. The Domino Effect of Uncalibrated Equipment

  The standard mandates strict tolerance control for Combined Loading Compression (CLC) fixtures:

• Axial alignment tolerance: ≤0.03mm

• Platen parallelism: ≤0.02mm/m

• Load cell accuracy: ±0.5% of indicated force
  Per ISO 7500-1:2018, misaligned fixtures can induce:

• Eccentric loading (up to 15% stress concentration)

• Premature failure at grip regions

• Non-uniform strain distribution across gauge length

  2. Cutting-Edge Calibration Methodologies

  Advanced labs now employ 6-DOF laser alignment systems featuring:

• Real-time loading axis monitoring (resolution: 1μm)

• Automated platen parallelism adjustment

• Dynamic load path visualization
  Table 1 Calibration Parameter Benchmarks

  Parameter	Uncalibrated	ASTM D6641 Spec
  Axis Deviation	0.15mm	≤0.03mm
  Load Oscillation	2.5%	≤0.8%
  Temperature Drift	±3℃	±1℃

  3. Stress Mapping Innovations

  Integration of high-speed IR thermography with traditional strain gauges enables:

• Detection of localized stress concentrations <1mm²

• Real-time Poisson’s ratio calculation

• Damage initiation prediction with 92% accuracy
  Case Study: Calibrated CLC fixtures reduced epoxy composite test variability from ±8.7% to ±2.1% in 2023 round-robin testing.

  4. Technical Assurance in Testing Services

  Newmeace (Qingdao) Testing Co., Ltd. operates climate-controlled calibration labs equipped with:

• Class 0.5 electromechanical testing machines

• Multi-axis optical measurement systems

• Cryogenic-to-elevated temperature chambers (-70℃ to 300℃)
  Our composite testing services adhere to ASTM D6641, ISO 14126, and JIS K7017 standards, providing:

• Full-field strain analysis via 12MP DIC systems

• Moisture-conditioned testing per ASTM D5229

• High-strain-rate compression testing up to 100/s
  Service Hotline: 186-5324-2346
