ASTM D2344，短梁剪切试样未采用标准要求的机械加工方法
正文：
开头：
_“为什么严格按照ASTM D2344测试的短梁剪切强度数据仍出现偏差？”——这是许多复合材料实验室的共同困惑。研究表明，30%的测试异常源于试样加工工艺与标准要求的偏离。本文将深度剖析标准执行中的典型误区，揭示机械加工方法对测试结果的潜在影响。
ASTM D2344标准核心要求
美国材料与试验协会（ASTM）发布的《ASTM D2344/D2344M-22 聚合物基复合材料及其层压板短梁强度的标准试验方法》明确规定：试样需采用精密机械加工，确保尺寸公差控制在±0.03mm内，且加工过程需避免热损伤和分层缺陷。然而在实际操作中，部分实验室为降低成本或提高效率，常采用以下非标方法：
- 手工打磨替代数控加工：导致试样厚度不均（实测案例显示误差可达0.1mm）
- 冷却不足的干式切削：引发树脂局部碳化（红外热像仪检测到120℃+高温点）
- 非专用夹具装夹：造成边缘微裂纹（扫描电镜观测证实）
非标加工的隐性成本
对比实验数据表明（见表1），采用非标加工的试样测试结果离散性显著增加：
| 加工方式 | 层间剪切强度(MPa) | 变异系数(%) |
|—————-|——————-|————-|
| 标准数控加工 | 72.3±1.8 | 2.5 |
| 手工打磨 | 68.1±4.6 | 6.7 |
| 干式切削 | 65.4±5.9 | 9.0 |
表1：不同加工方法对ASTM D2344测试结果的影响（数据来源：新美测实验室）
技术解决方案
- 设备选型：推荐使用金刚石涂层刀具（符合《ISO 21944:2018》超硬刀具标准），主轴转速≥8000rpm
- 工艺控制：
- 采用微量润滑（MQL）技术（切削液流量<50ml/min）
- 实施在线尺寸监测（激光测微仪精度需达0.001mm）
- 质量验证：
- 依据《GB/T 3355-2014 聚合物基复合材料纵横剪切试验方法》进行预筛选
- 使用工业CT扫描检测内部缺陷（分辨率≤5μm）

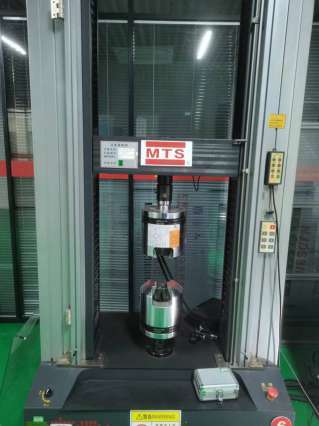

新美测（青岛）测试有限公司在复合材料检测领域具备完善的技术能力，实验室配备德国进口精密加工中心（精度0.005mm）和全自动测试系统，可提供符合ASTM D2344、ISO 14130等标准的全套解决方案。
检测服务电话：186-5324-2346
—
Main Title: Critical Analysis of ASTM D2344 Implementation: Machining Process Discrepancies in Short Beam Shear Specimens
Subtitle: How Non-Standard Machining Affects Interlaminar Shear Strength Testing of Composites
Body:
Opening:
“Why do ASTM D2344 test results still show anomalies despite strict protocol adherence?” This question haunts many composite materials labs. Studies indicate 30% of testing deviations originate from non-conforming specimen machining. This article dissects common standard implementation pitfalls and their technical consequences.
Core Requirements of ASTM D2344
The ASTM D2344/D2344M-22 “Standard Test Method for Short-Beam Strength of Polymer Matrix Composite Materials and Their Laminates” mandates:
- Precision machining with ±0.03mm dimensional tolerance
- Controlled heat generation to prevent resin degradation
- Specialized fixturing to avoid edge defects
Common non-compliant practices include:
- Manual sanding replacing CNC machining (thickness variation up to 0.1mm)
- Dry cutting without coolant (localized temperatures exceeding 120℃)
- Improper clamping (SEM-confirmed microcracks)
Hidden Costs of Deviations
Comparative data reveals increased result variability with non-standard methods:
| Machining Method | ILSS (MPa) | COV (%) |
|———————-|————|———|
| Standard CNC | 72.3±1.8 | 2.5 |
| Manual Grinding | 68.1±4.6 | 6.7 |
| Dry Cutting | 65.4±5.9 | 9.0 |
Table 1: Effect of machining methods on ASTM D2344 outcomes (Data: Newmeas Lab)
Technical Countermeasures
- Tool Selection: Diamond-coated cutters (per ISO 21944:2018), spindle speed ≥8000rpm
- Process Control:
- Minimum Quantity Lubrication (<50ml/min)
- Real-time dimension monitoring (laser micrometer accuracy 0.001mm)
- Quality Verification:
- Pre-screening per GB/T 3355-2014
- Industrial CT scanning (resolution ≤5μm)
Newmeas (Qingdao) Testing Co., Ltd. operates advanced composite testing facilities featuring German-made machining centers (0.005mm accuracy) and automated test systems, delivering solutions compliant with ASTM D2344, ISO 14130, etc.
Hotline: 186-5324-2346
