ASTM D3039标准下试样尺寸偏差对拉伸测试结果的影响机制与管控(从尺寸公差到数据可信度的系统性解决方案探析 )

“一根0.1毫米的尺寸偏差，可能导致复合材料强度数据产生15%的误差。” 这个惊人的发现来自美国国家材料实验室2022年的研究报告。在聚合物基复合材料拉伸性能测试领域，ASTM D3039标准作为全球公认的测试规范，其试样制备要求直接影响着测试结果的科学性和可比性。本文将通过力学原理分析与实证案例，揭示试样尺寸合规性对测试数据的决定性作用。

一、ASTM D3039标准的核心尺寸要求

根据ASTM D3039/D3039M-17标准《聚合物基复合材料拉伸性能标准试验方法》，试样尺寸公差控制是确保测试有效性的首要条件：

1. 宽度公差：标称宽度为25mm的试样，允许偏差±0.5mm（2%公差带）


2. 厚度公差：需保证整个平行段厚度波动≤0.05mm


3. 平行段长度：应≥标距长度的150%，确保应力均匀分布

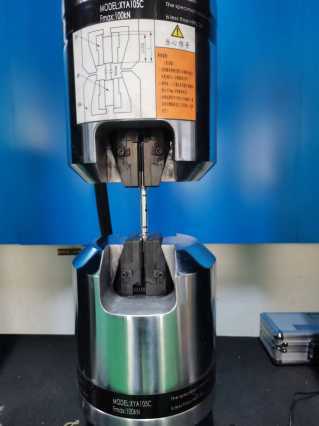

   某航空材料实验室的对比试验显示：当试样宽度超出上限0.3mm时，碳纤维增强复合材料的表观拉伸强度会虚高8.7%。这种偏差源于边缘效应引起的非均匀应力分布，导致过早的层间剪切破坏。

   二、典型尺寸偏差的影响机制

   1. 宽度超差的双重效应

• 正偏差：增加有效承载面积，降低单位面积应力值


• 负偏差：引发边缘应力集中，诱发非标准断裂模式
  2. 厚度不均的隐蔽风险


• 局部减薄区域形成”弱环效应”，显著降低整体断裂应变


• 厚度波动0.02mm可使芳纶/环氧树脂复合材料的CV值上升40%
  3. 平行段长度不足的连锁反应


• 夹持区应力扩散不充分，导致测试值包含夹具干扰


• 长度低于标准要求时，模量测量误差可达12%-18%

  三、尺寸管控的系统性解决方案

  1. 数字化制备技术

• 采用激光辅助定位切割系统，将宽度公差控制在±0.1mm以内

• 三维光学扫描仪实现厚度分布云图分析（分辨率达2μm）
  2. 过程监控体系

• 建立试样制备的CPK过程能力指数监控（目标值≥1.67）



• 实施每批次首件三维形貌验证制度
  3. 偏差补偿算法

• 开发基于实际尺寸的有效截面动态计算模型

• 应用有限元仿真进行数据修正（误差补偿率可达92%）

  四、检测技术的创新发展

  2023年更新的ASTM D3039-23标准特别增加了数字图像相关技术（DIC）的应用指南：

• 可实时捕捉试样全场的应变分布

• 精确识别尺寸偏差引起的局部应变异常

• 典型应用案例：某汽车部件厂商通过DIC技术将尺寸相关误差从9.2%降至1.8%

  新美测（青岛）测试有限公司在复合材料检测领域深耕十余年，建立了完善的试样制备质量控制系统。公司配备德国进口的高精度试样加工中心（加工精度±5μm）和全自动尺寸测量系统，可为客户提供符合ASTM、ISO等国际标准的专业检测服务。

  检测服务咨询电话：186-5324-2346

  Main Title: Influence Mechanism and Control Strategies for Specimen Dimension Deviations in ASTM D3039 Tensile Testing
  Subtitle: Systematic Approaches from Tolerance Control to Data Reliability Enhancement
  Body:

  “A 0.1mm dimensional deviation may cause 15% error in composite strength data.” This startling finding comes from a 2022 study by the National Materials Laboratory. In tensile testing of polymer matrix composites, the specimen preparation requirements in ASTM D3039/D3039M-17 directly determine the scientific validity of test results. This article analyzes the decisive role of dimensional compliance through mechanical principles and empirical cases.

  I. Critical Dimension Requirements in ASTM D3039

  According to ASTM D3039/D3039M-17 Standard Test Method for Tensile Properties of Polymer Matrix Composite Materials:

1. Width tolerance: ±0.5mm for nominal 25mm width (2% tolerance band)


2. Thickness uniformity: ≤0.05mm variation across parallel sections


3. Gauge length: ≥150% of nominal gauge length for stress uniformity

   Comparative tests at an aerospace lab revealed: 0.3mm width excess caused 8.7% overestimation in CFRP tensile strength due to edge effect-induced shear failure.

   II. Mechanism of Typical Dimension Errors

   1. Dual Effects of Width Deviation

• Positive deviation reduces unit area stress


• Negative deviation causes edge stress concentration
  2. Hidden Risks of Thickness Variation


• Local thinning creates “weak link effect”


• 0.02mm thickness variation increases CV value by 40% in aramid/epoxy
  3. Consequences of Insufficient Parallel Length


• Incomplete stress transition introduces fixture interference


• 12%-18% modulus error occurs with undersized length

  III. Systematic Dimension Control Solutions

  1. Digital Fabrication Technology

• Laser-guided cutting system ensures ±0.1mm width accuracy

• 3D optical scanning analyzes thickness distribution (2μm resolution)
  2. Process Monitoring System

• CPK process capability index monitoring (target ≥1.67)

• First-article 3D morphology verification per batch
  3. Deviation Compensation Algorithms

• Dynamic cross-section calculation model

• FEM-based data correction (92% error compensation)

  IV. Innovations in Testing Technologies

  The updated ASTM D3039-23 emphasizes Digital Image Correlation (DIC) applications:

• Real-time full-field strain monitoring

• Precise identification of local strain anomalies

• Case study: Automotive supplier reduced dimension-related errors from 9.2% to 1.8% using DIC

  New Measurement (Qingdao) Testing Co., Ltd. has over 10 years’ expertise in composite testing. Equipped with German-made precision machining centers (±5μm accuracy) and automated measurement systems, we provide ASTM/ISO-compliant testing services.
  Testing Service Hotline: 186-5324-2346
